Fans Mini-Box

Download Product Info


The MINI-BOX series consists of centrifugal in-line fans, with acoustically insulated casing and with round spigot (diameter from 100mm to 315mm) for easy connection to round duct system.

Main features of this range are: modularity, extremely quiet operation, reduced dimensions and ease of installation (thanks to included support bracket) and maintenance (thanks to accessible motor/impellor).

The ultra-slim shape of these fans make them ideal for false ceiling installation in houses, offices, public premises…

They are suitable to convey clean air with a temperature range from -10°C to +60°C.

For acoustic peformance download the product info brochure

Specifications & Options

How to add to your estimate:

  1. Select the model you wish to order from the table
  2. Click the 'Add To Basket' button
  3. To edit quantities click the 'View Order' button at the top of the page

  Mini-Box 100
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB0104 100 M 0.06 0.23 1990 44/F SELECTED
Add To Basket

  Mini-Box 125
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB0133 125 M 0.06 0.23 1700 44/F SELECTED
Add To Basket

  Mini-Box 150
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB0157 150 M 0.06 0.23 2530 44/F SELECTED
Add To Basket

  Mini-Box 200
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB2010 200 M 0.15 0.49 2550 44/F SELECTED
Add To Basket

  Mini-Box 250
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB2505 250 M 0.20 0.65 2550 44/F SELECTED
Add To Basket

  Mini-Box 315
Code Model U PM (kW) In (A) Rpm IP/CL Order
1MB3155 315 M 0.35 1.14 2630 44/F SELECTED
Add To Basket

A B C D E F G I L Kg
Mini-Box 100 433 510 307 99 167 - 40 - 10 7.8
Mini-Box 125 433 510 307 124 167 - 40 - 10 7.8
Mini-Box 150 433 510 307 150 187 - 40 - 10 8.2
Mini-Box 200 503 580 373 198 233 260 40 60 10 12.8
Mini-Box 250 503 610 373 247 283 310 55 60 10 14.8
Mini-Box 315 503 610 423 314 343 370 55 60 10 17.8


CONSTRUCTION

  • Casing in galvanized steel sheet, lined with acoustic insulation (thickness 10 mm).
  • Single-phase electric motor, IP44, class F, with thermal protection, suitable for speed control (using the suitable speed regulators shown in this catalogue).
  • Fitting bracket
  • Backward curved impeller with high efficiency and low noise level.
  • Outer terminal box IP55.
Select your products
and receive a
no obigation quote

Accessories

  • Electric duct heaters BE.
  • Backdraught shutters.
  • Duct clamps.
  • Protection guards.

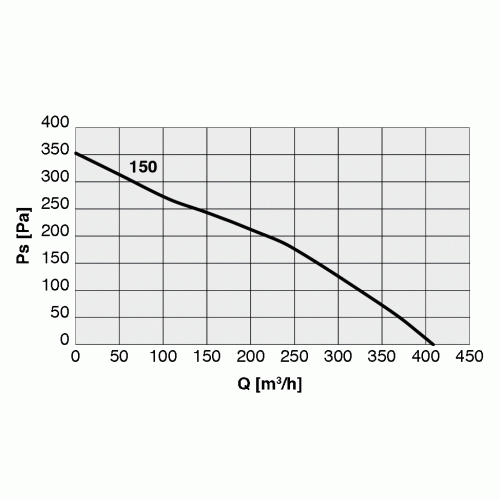

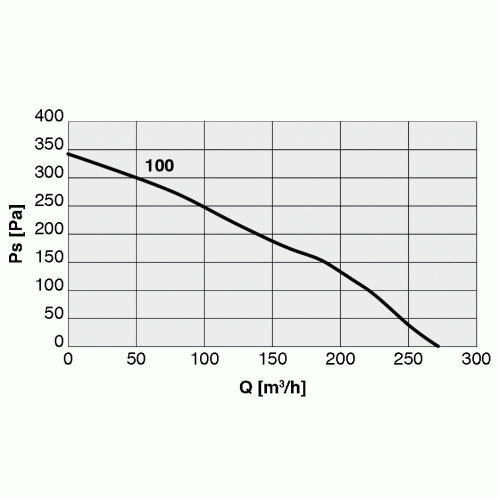

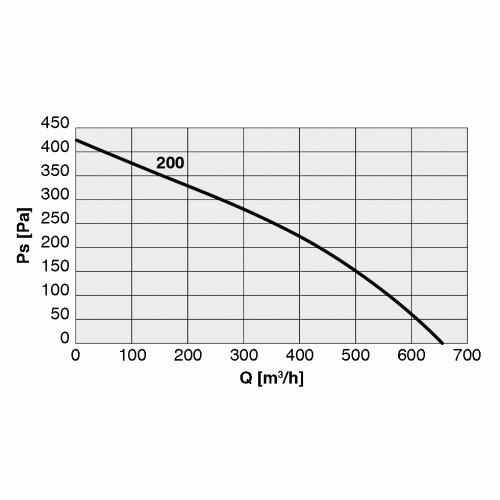

Air performances measured according to EN ISO 5801 / AMCA 210 standard with air density with 1.2 kg/m³ specific weight. Power supply 230V/1Ph/50Hz or 400V/3Ph/50Hz. In compliance with EU Regulation 1253/2014, he single flow Ventilation Units must be connected to a VSD (Variable Speed Drive) when put into service.



Lp: Sound pressure levels measured in free field conditions, propagation hemispherical, measurement category D in accordance with EN ISO 13349, at the maximum efficiency point, at a distance of 1,5 meters from inlet side (for comparative purposes only). Lw: Sound power levels obtained according to ISO 3746. Tolerance +/- 3 dB(A).
